XQL-8 Single Knife Bale Cutter | Hydraulic Vertical Rubber Cutter | Qingdao Jiaxinrun Machinery 编号：XQL-8 产地：Qingdao, Shandong, China

Cut natural rubber or synthetic rubber bales into smaller pieces that are easier to process. Rubber is a solid with high elasticity and toughness. Due to different processing scales, different processing conditions, different rubber varieties and properties, rubber bale cutters have various specifications and performance types.

在线询价

上一个下一个

详细内容 规格参数 产品包装

XQL-8 Single Knife Bale Cutter Main Technical Parameters:

Product Model: XQL-8
Bale cutter width: 660mm
Bale cutter stroke: 680mm
Cylinder diameter: 150mm
Cutting stroke time: 16-25s
Power: 5.5KW
Dimensions: approx. 1900×720×2380mm
Equipment weight: approx. 1000kg
With worktable, safety protection net

Rubber Bale Cutter Usage:
Before starting the rubber bale cutter, first check whether the hydraulic system is working normally, no hydraulic oil leakage, sufficient oil quantity. Check whether the cutting blade is worn, dropped, no curling or gaps on the blade edge, and whether the cutting blade limit switch is normal. Check whether the soft lead in the groove has been replaced, clean up debris on the machine, no abnormal vibration, check around the blade groove and equipment for debris.

Then turn on the main power, start the oil pump. After the equipment is checked to be normal, proceed with normal cutting operation. The blade up and down speed has been adjusted, operators shall not adjust it arbitrarily to prevent safety accidents.

If adjustment is needed during the cutting process, press the stop button before manual adjustment to prevent safety accidents. After cutting work is finished, press the up switch to stop at the limit position, then press the stop button to reset. Press the oil pump stop button to stop the oil pump. Turn off the main power, clean up around the equipment and the blade groove in time.

8 Ton Bale Cutter:
Adopts high-quality double-acting cylinder, blade adopts manganese steel material thickened type can be sharpened multiple times, frame adopts advanced welding technology steel plate welding strong and durable, adopts high-flow vane pump to ensure cutting efficiency. Can customize different width equipment according to customer rubber material needs, welcome customers to purchase!

XQL-8 Single Knife Bale Cutter Main Technical Parameters:
Product Model: XQL-8
Bale cutter width: 660mm
Bale cutter stroke: 680mm
Cylinder diameter: 150mm
Cutting stroke time: 16-25s
Power: 5.5KW
Dimensions: approx. 1900×720×2380mm
Equipment weight: approx. 1000kg
With worktable, safety protection net

相关产品

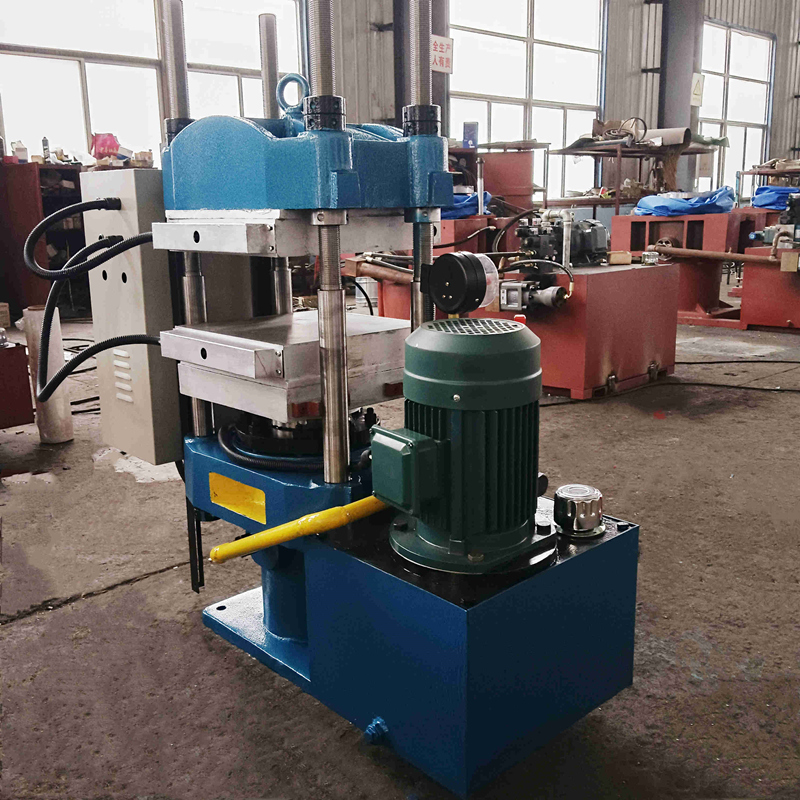

Four column 25 ton flat vulcanizing machine

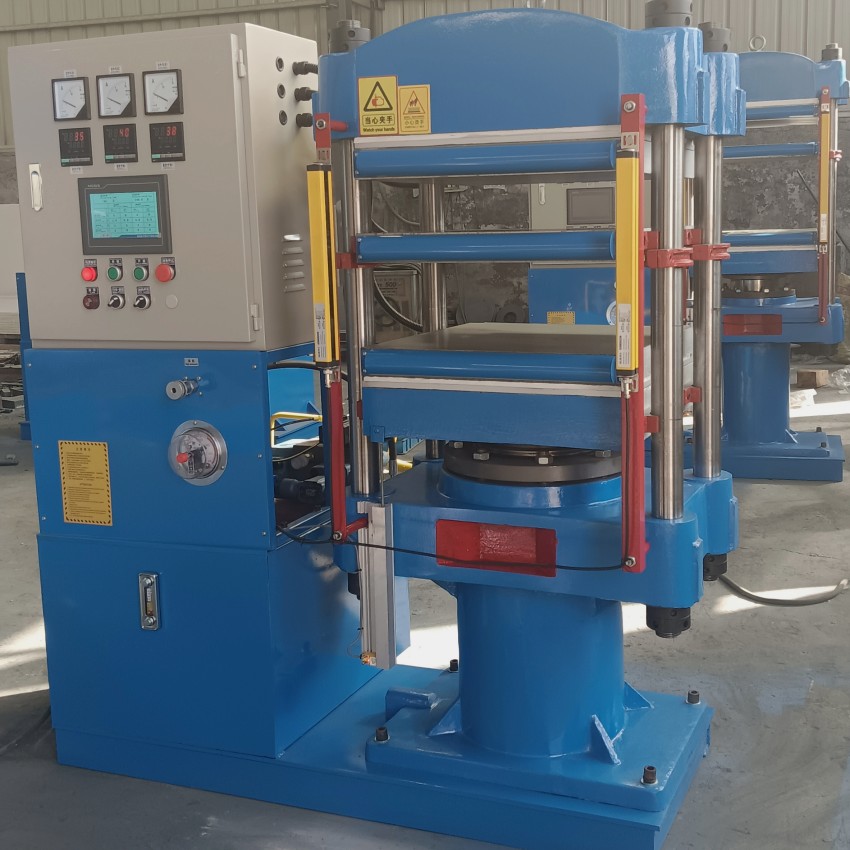

Touch screen with pressure transmitter

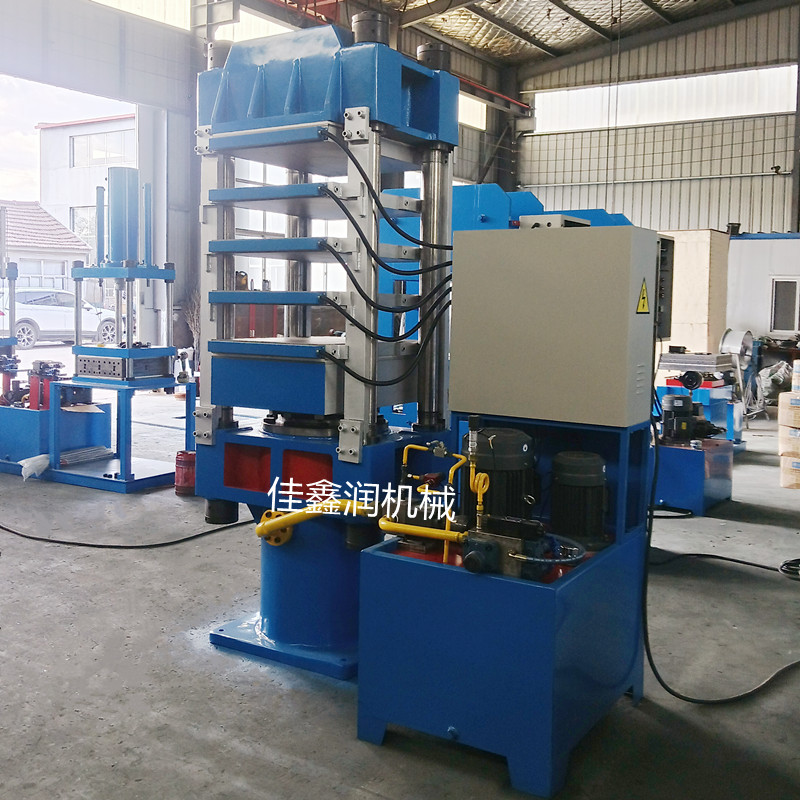

200 ton 4-layer flat vulcanizing machine
