Product Detailed Description:

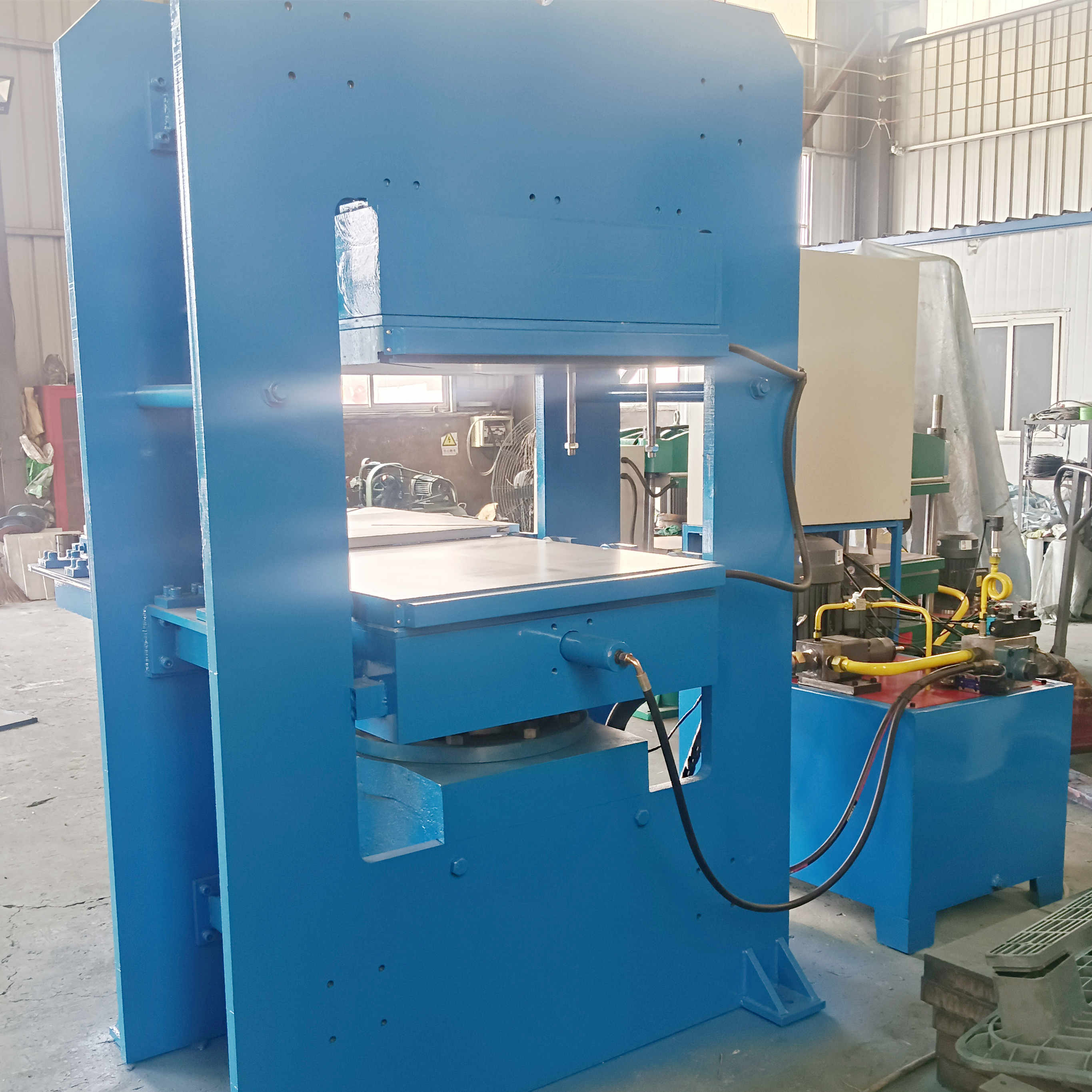

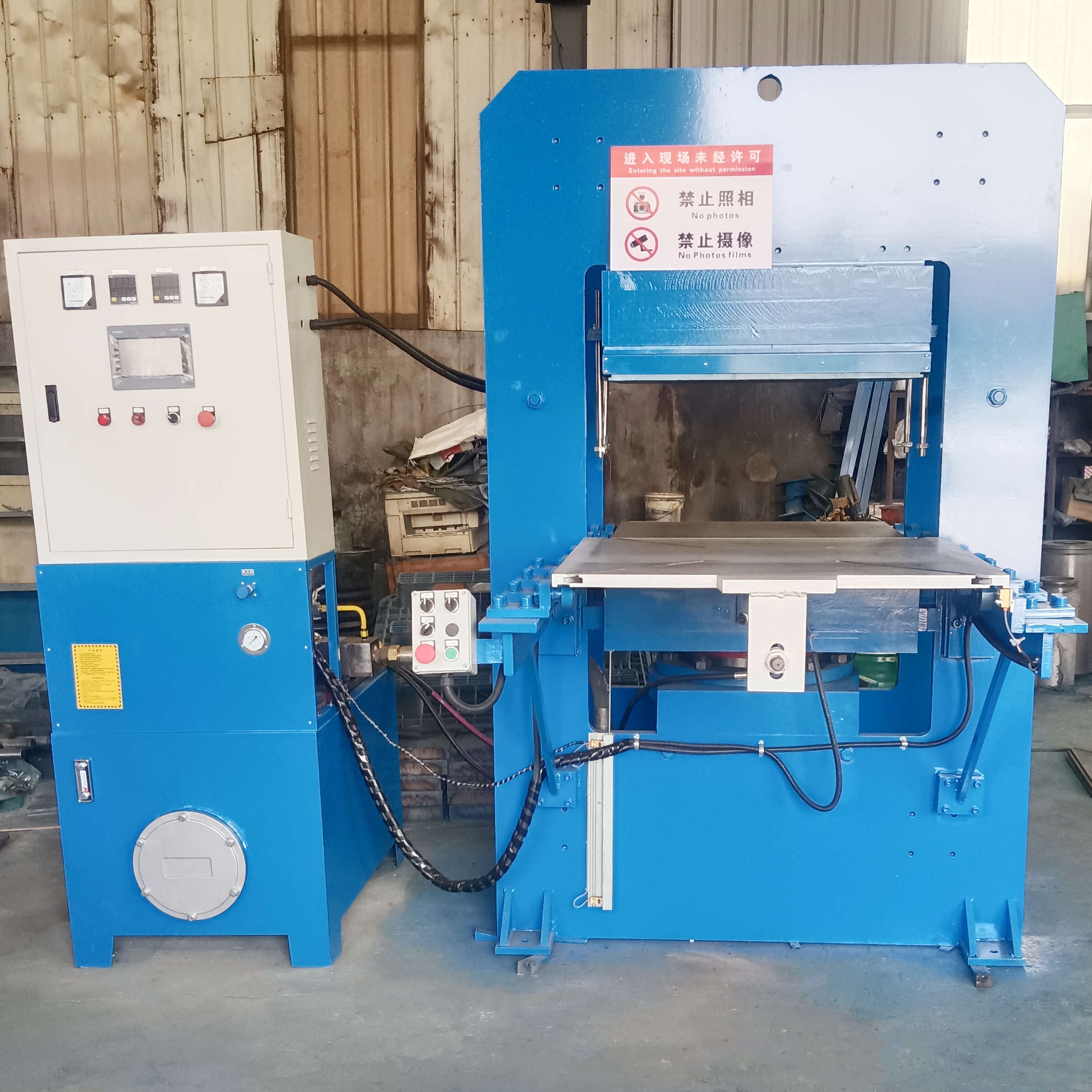

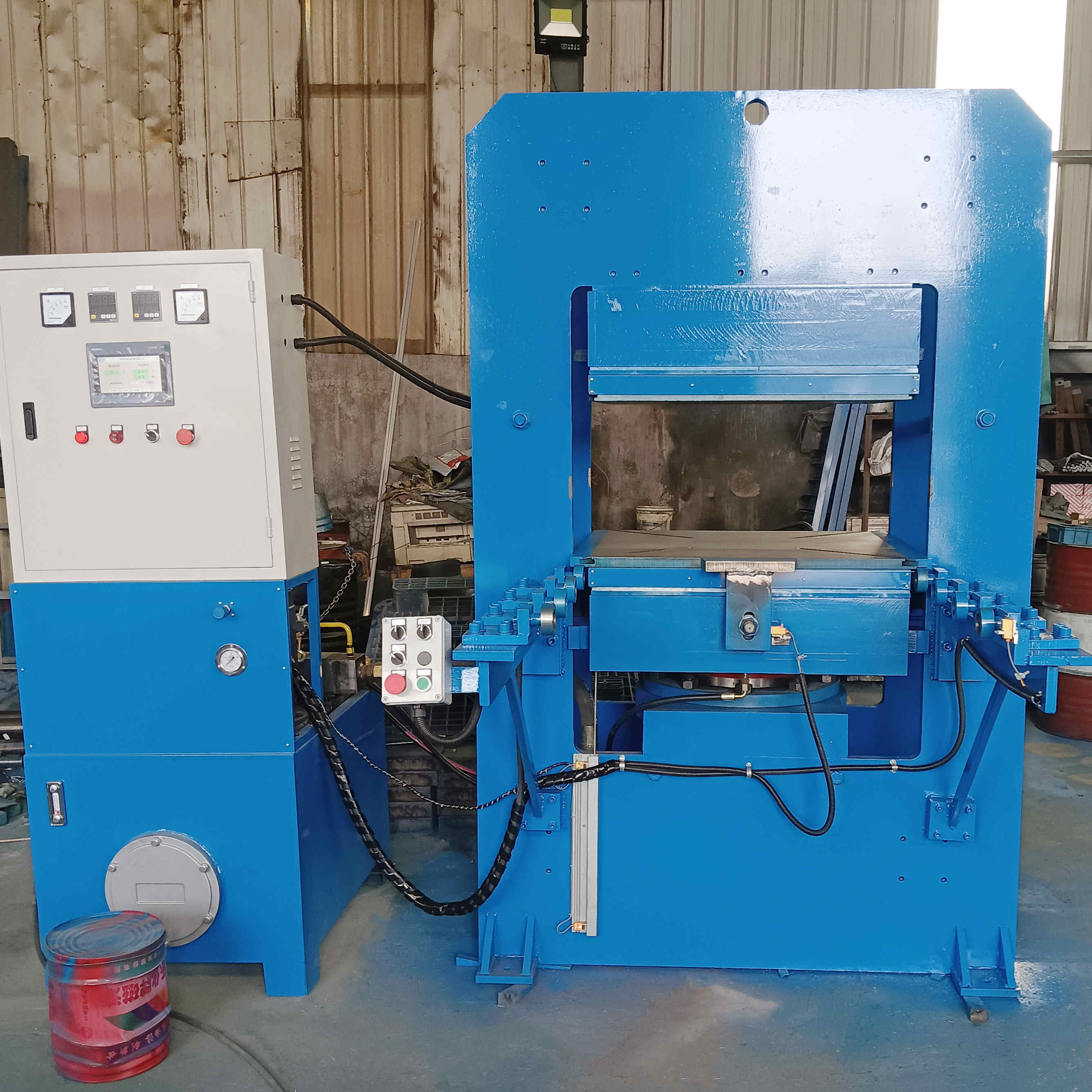

This XLB-D2.00MN frame type plate vulcanizing machine is one of our main models. It solves the pain point of traditional vulcanizing machines that require manual loading and unloading of molds. Through the integrated hydraulic automatic mold push-pull device, automatic mold loading and unloading is achieved. Coordinated with the PLC control system, the entire process of mold closing, exhaust, timing, and mold opening requires no manual attendance. The equipment's hot plate has uniform thermal conductivity, and combined with the PID instrument temperature control, it ensures precise vulcanization temperature. Whether used for ordinary rubber products or special composite materials with high requirements for temperature and pressure, this equipment can provide stable process guarantee.
Professional manufacturing of XLB-D2.00MN frame type plate vulcanizing machine, suitable for molding of rubber products, composite materials, engineering plastics, etc. The equipment adopts a high-strength frame structure, equipped with a PLC fully automatic control system and a hydraulic automatic mold push-pull device, realizing full-process automation of "mold push-pull - mold clamping and exhaust - vulcanization timing - mold opening and ejection," effectively improving production efficiency and product consistency.
200 Ton Frame Type Plate Vulcanizing Machine Technical Parameters:
Nominal Clamping Force: 200 Tons (200T)
Hot Plate Specification: 800 mm × 800 mm
Heating Method: Electric heating tube heating (Normal temperature ~ 200℃ adjustable)
Temperature Control Accuracy: PID intelligent temperature control
Hot Plate Gap: 500 mm
Plunger Stroke: 500 mm
Hydraulic System: Single cylinder Φ400mm, system pressure 16MPa
Structure Type: High-strength frame type
Control Method: PLC touch screen automatic control
Mold Operation: Hydraulic automatic mold push-pull
Main Product Features:
Sturdy Structure, High Precision: Adopts an integral frame structure, good rigidity, strong anti-eccentric load capability, ensuring long-term hot plate parallelism and uniform product thickness.
Fully Automatic Production Process: Standard equipped with PLC control system, can set multi-stage exhaust times, vulcanization time, pressure range. From mold pulling in, mold clamping and pressure holding, automatic exhaust, vulcanization timing to mold opening and ejection, one-key operation reduces labor costs.
Intelligent Temperature Control, Energy Saving and Uniform: High-quality electric heating tubes with PID temperature control instrument, uniform temperature distribution on the hot plate surface, small temperature difference, rapid heating, adaptable to various vulcanization process requirements.

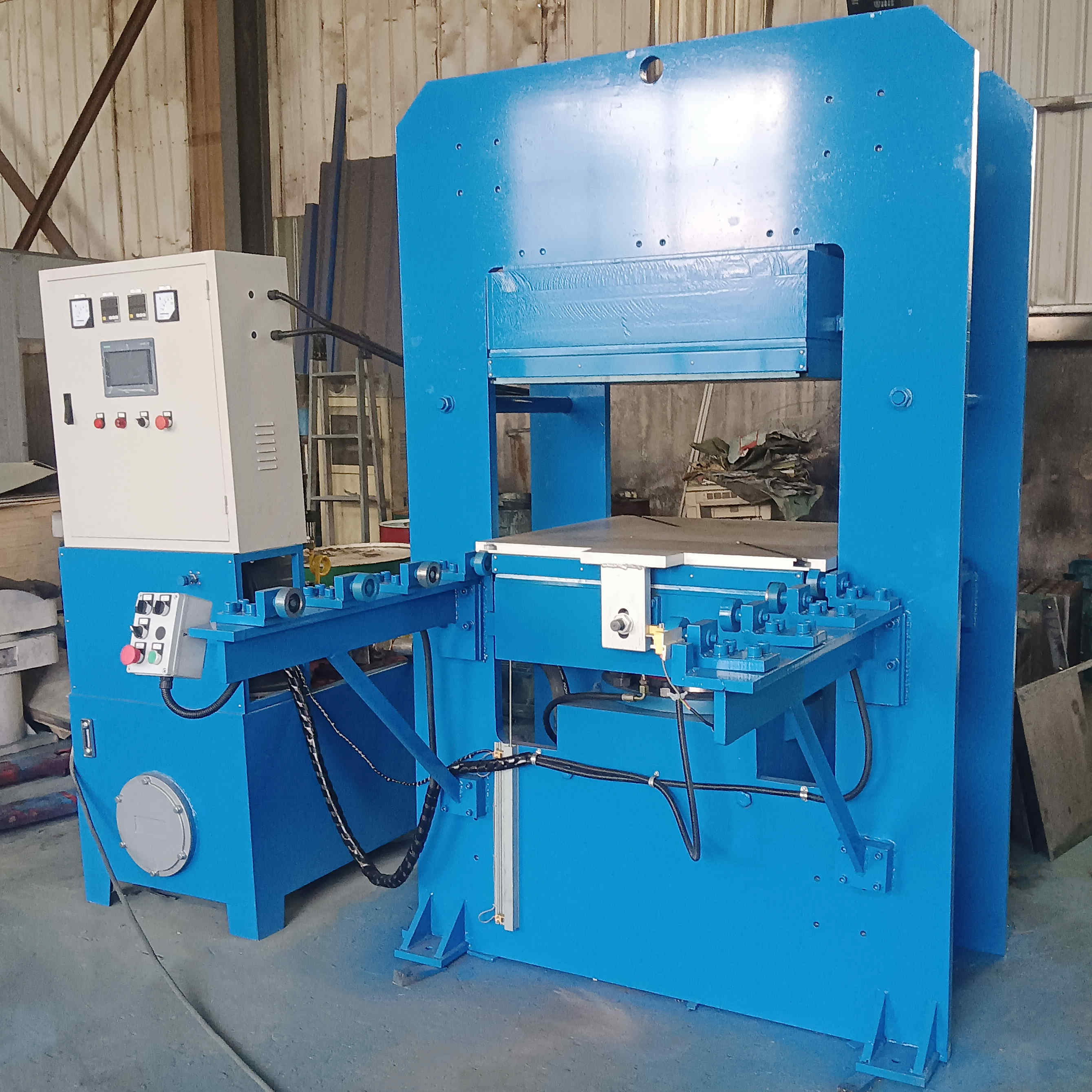

Hydraulic Mold Push-Pull, Safe and Efficient: Automatic mold push-pull mechanism reduces labor intensity of manual mold handling, smooth operation, accurate positioning, greatly improving operational safety.
Customizable Action Program: Can adjust mold clamping pressure and exhaust mode according to customer's specific process requirements.
Scope of Application:
Suitable for the molding processing of rubber seals, rubber gaskets, rubber soles, silicone products, composite material laminates, brake pads, and various thermosetting plastic products.
Why Choose Us:
Source Factory: Independent research and development and production, can customize hot plate size, number of layers and tonnage according to needs.
Quality Assurance: Core hydraulic parts and electrical components use well-known domestic and foreign brands, stable operation.
After-sales Service: Provide installation and commissioning guidance, operation training and one-year warranty service.
Contact Us:
Welcome to call for consultation or visit our factory for inspection, we will provide you with professional vulcanization molding solutions!
