700×700 rubber floor tile press 80 ton rubber tile vulcanizing machine-Qingdao Jiaxinrun Machinery Co., Ltd

700×700 rubber floor tile press 80 ton rubber tile vulcanizing machine 价格：29000元编号：XLB-D700×700×2/0.80MN 产地：Qingdao, Shandong, China

XLB-D700×700×2/0.80MN Rubber Floor Tile Vulcanizing Press —— Designed for 600×600 floor tiles, stable and high-yield!

在线询价

上一个下一个

详细内容 规格参数 产品包装

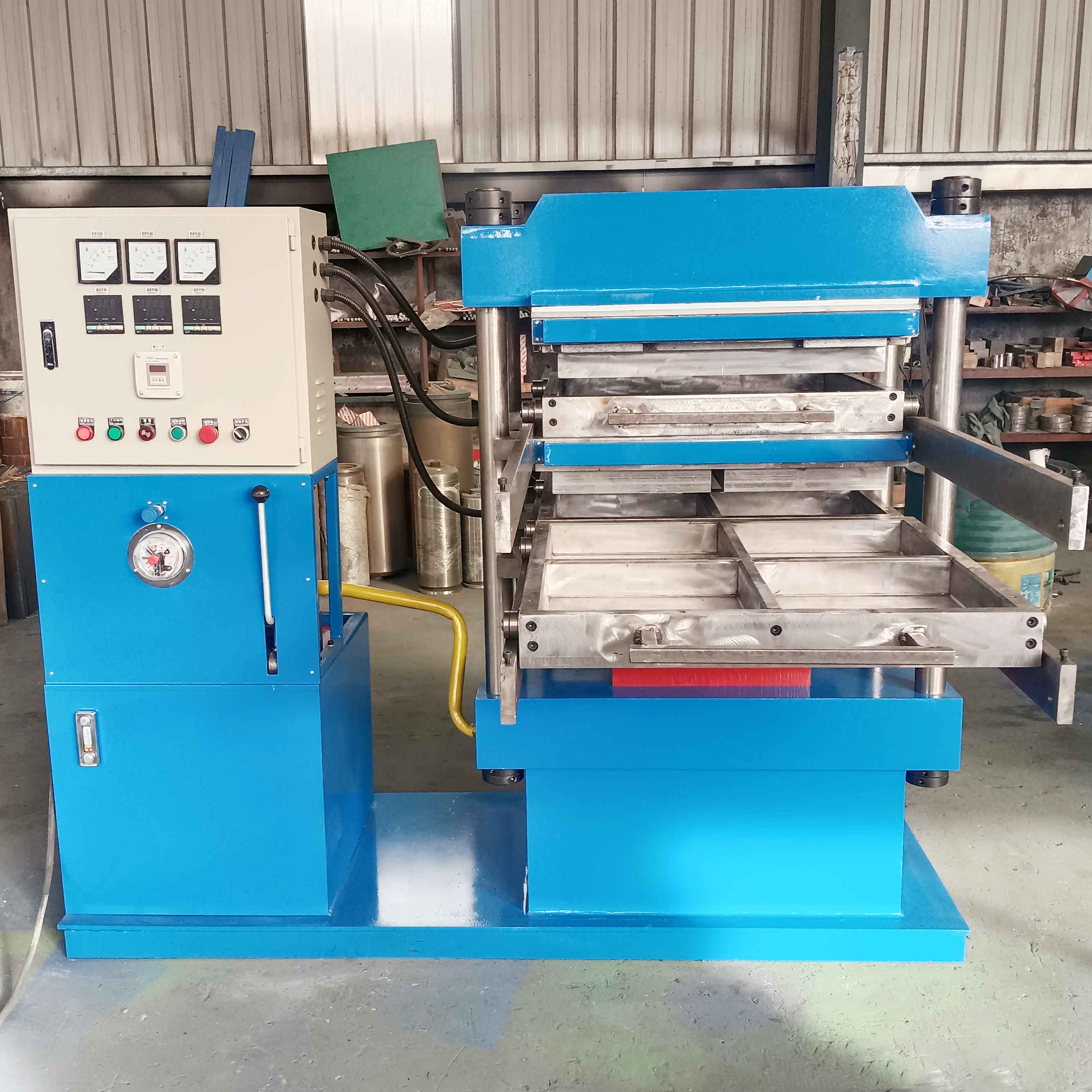

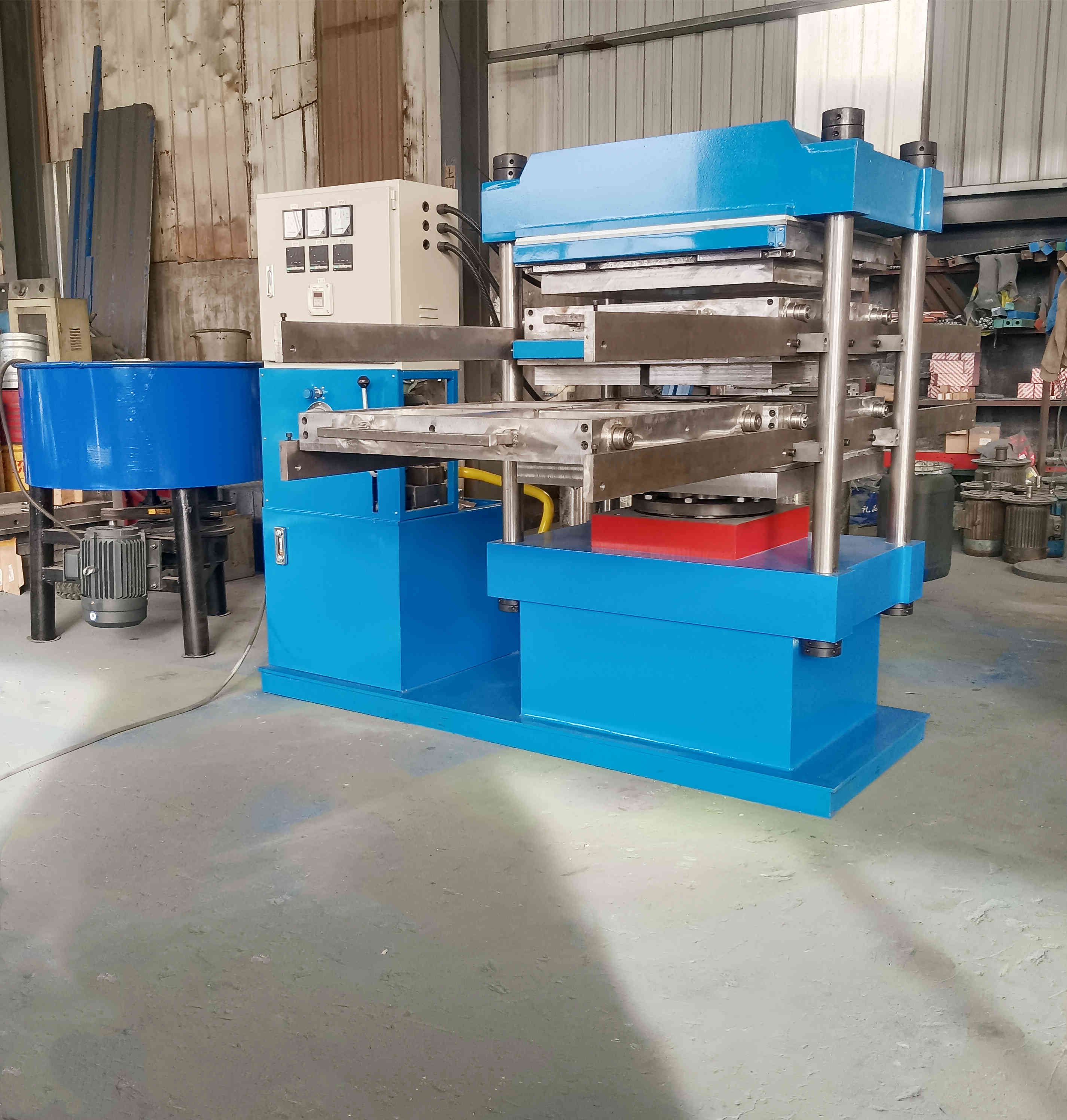

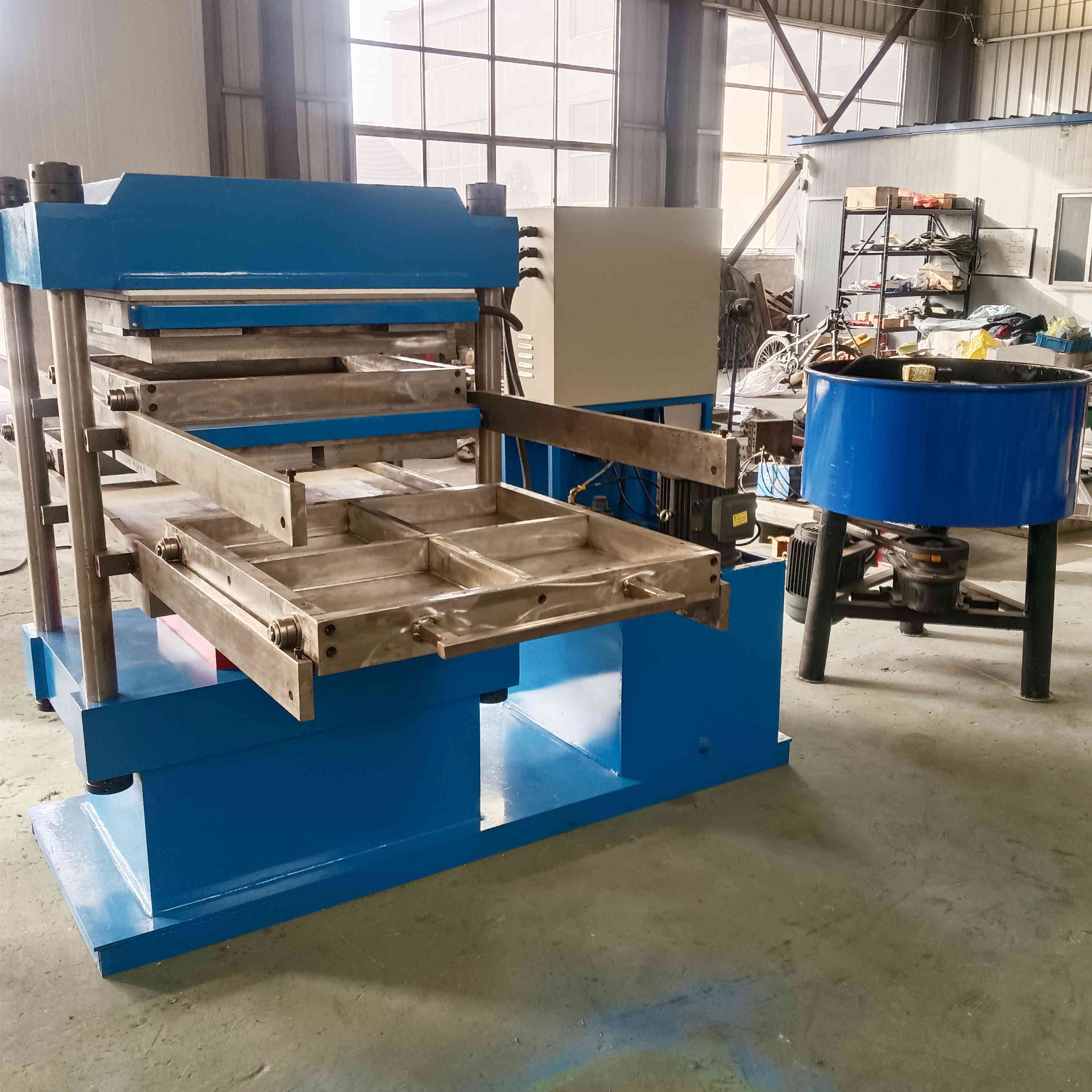

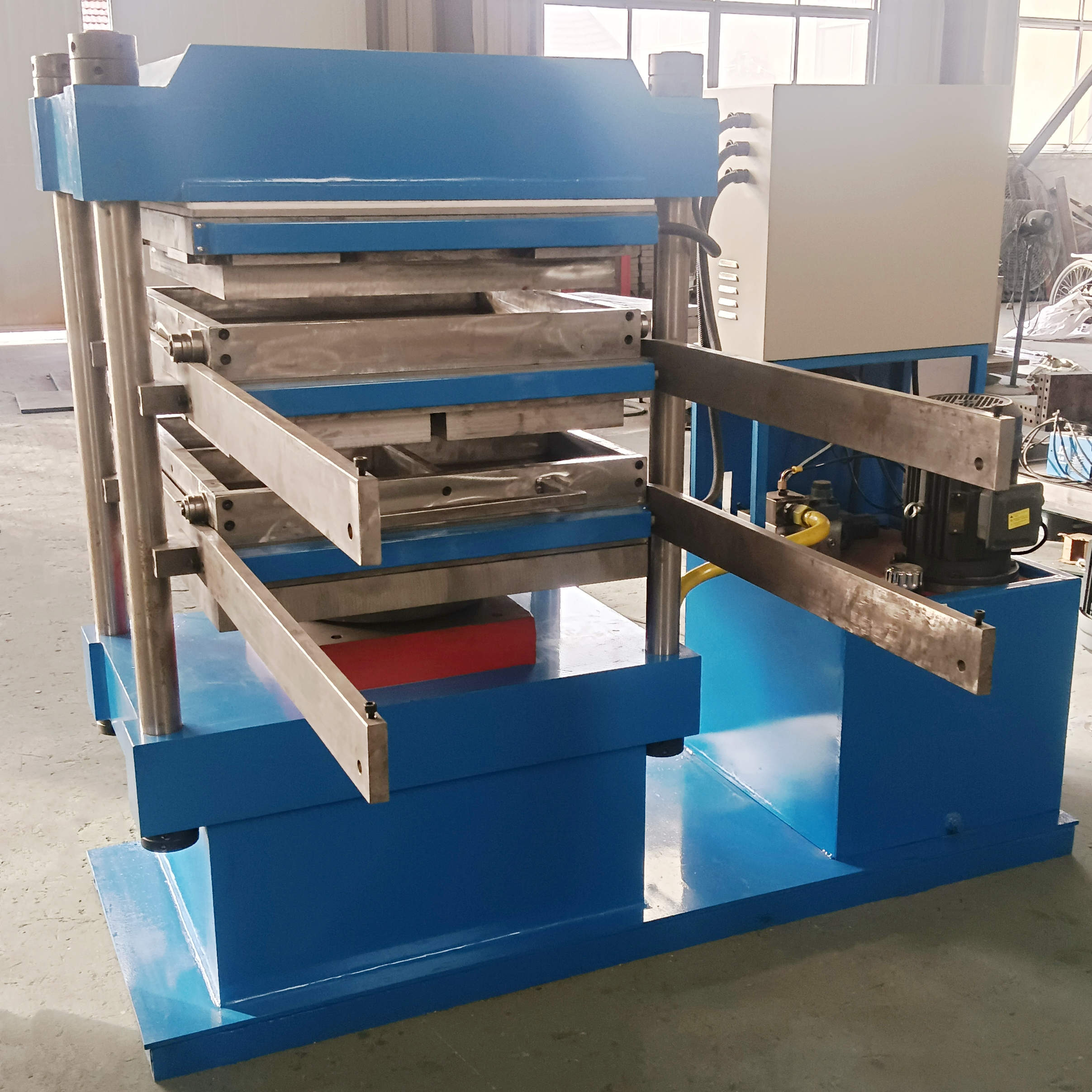

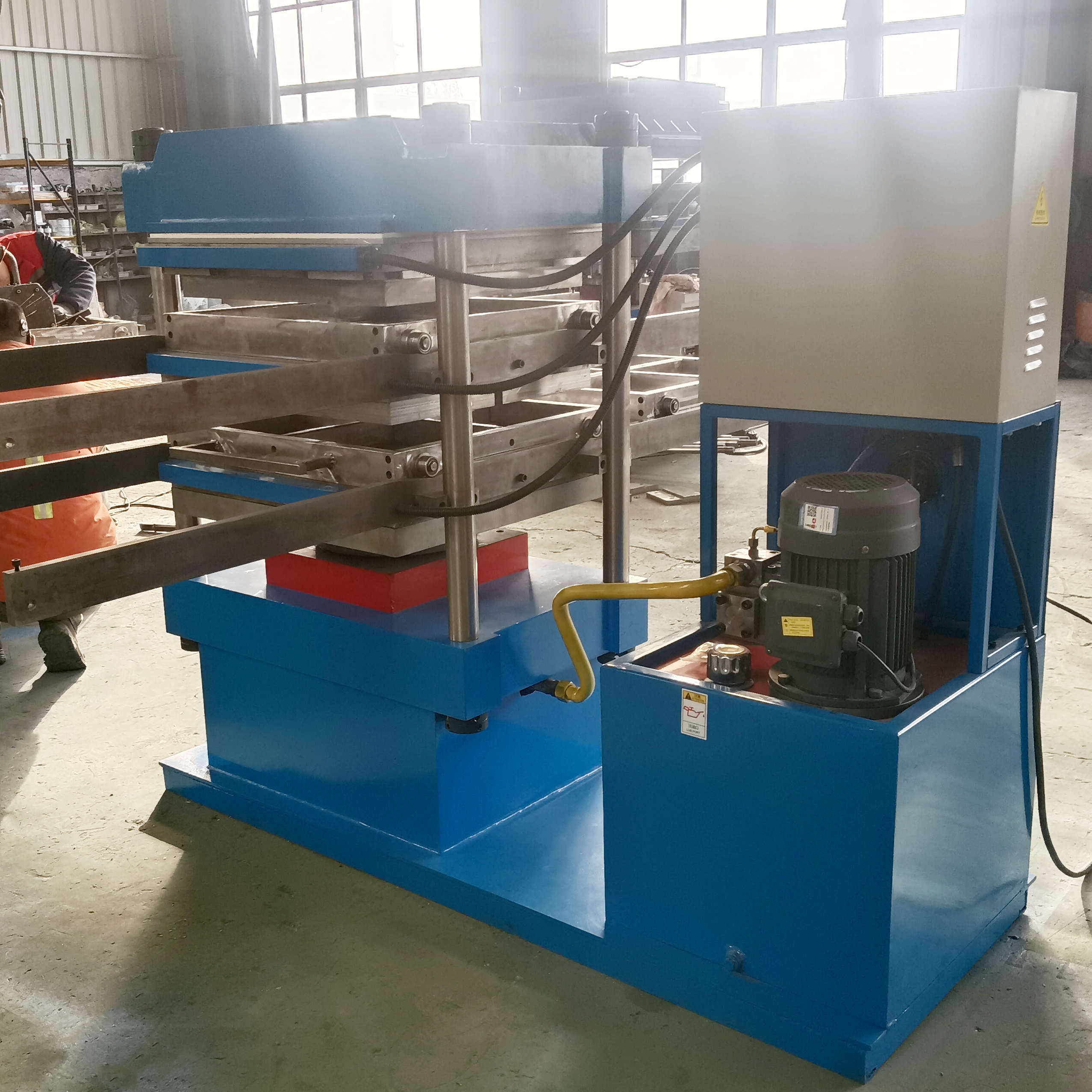

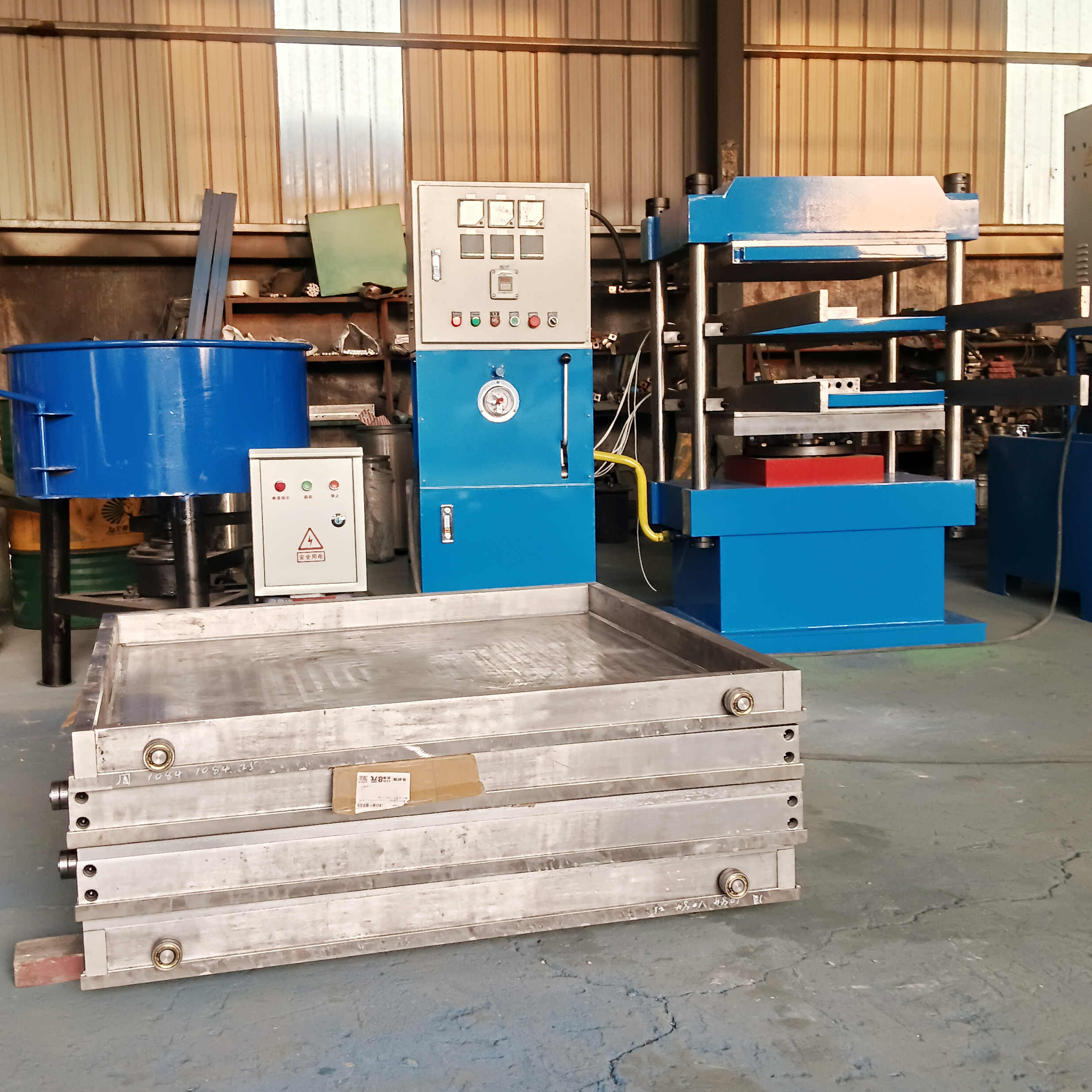

XLB-D700×700×2/0.80MN Rubber Floor Tile Vulcanizing Press

—— Designed for 600×600 floor tiles, stable and high-yield!

This machine adopts a four-column downward-pressing structure and is specifically designed for batch production of 600×600mm rubber floor tiles. With a pressure of 0.80MN (80 tons), it ensures that rubber floor tiles are dense, free of pores, wear-resistant and compression-resistant. Applicable to 700×700mm rubber floor tiles, colored anti-slip plates, recycled rubber floor tiles, rubber pads, sound insulation and damping pads. Adopting the classic configuration of electric heating + manual control + two-side manual mold loading/unloading, it offers extremely high cost performance and is a popular model for small-scale factories, startup production lines and export markets.

Humanized design:Mold loading/unloading method: two-side manual push-pull mold, easy to operate, labor-saving and safe.

Control method: manual control, simple and reliable, easy to maintain.

Electric heating, maximum temperature: 200℃, meeting the requirements of rubber vulcanization process.

Energy-saving and power-saving.

Parameter	Value
Nominal Clamping Force	0.80 MN (80 tons)
Platen Size	700 × 700 mm
Number of Working Layers	2 layers
Platen Gap	150 mm
Plunger Diameter	250 mm
Plunger Stroke	300 mm
Unit Area Pressure	18.3 kg/cm²
Working Hydraulic Pressure	16 MPa
Motor Power	2.2 KW / 220V / 50HZ
Maximum Temperature	200℃ (Electric Heating)
Control Method	Manual Control
Mold Loading/Unloading Method	Two-side manual push-pull mold
Structure Type	Four-column
